Current rating
Up to 32A
Single phase: Up to 125A
3-phase: Up to 63A
Single phase: Up to 250A
3-phase: Up to 160A
Configuration
Single phase
Single and 3-phase
Maintenance bypass
Optional
Yes
Hot Swappable
No
Yes
With a MTBF of 800,000 hours, Static Power’s 19″ iRACK are dedicated to applications requiring a high level of reliability.
All iSTS B models can be supplied with an integrated maintenance bypass with hot socket field replaceable power module facilitating maintenance and reducing Time To Repair at its minimum.
All our 19″rack iRACK are adaptable to particular applications or requirements.
Features
- True solid state, Break-Before-Make transfer
- Transfer time: <1ms to ¼ cycle
- MTBF > 800,000h
- Hot socket replaceable power module
- Maintenance bypass
- Incoming source isolators
- HTTP, SNMP, MODBUS TCP, eMail and NTP
Static Transfer Switch - iSTS
Home > iRACK for 19″ rack
With a MTBF of 800,000 hours, Static Power’s 19″ iRACK are dedicated to applications requiring a high level of reliability.
All iSTS B models can be supplied with an integrated maintenance bypass with hot socket field replaceable power module facilitating maintenance and reducing Time To Repair at its minimum.
- Single and 3-Phases, 10A to 250A
- True solid state, Break-Before-Make transfer
- Transfer time: <1ms to ¼ cycle
- MTBF > 800,000h
- Hot socket replaceable power module
- Maintenance bypass
- Incoming source isolators
- HTTP, SNMP, MODBUS TCP, eMail and NTP
All our 19″rack iRACK are adaptable to particular applications or requirements.

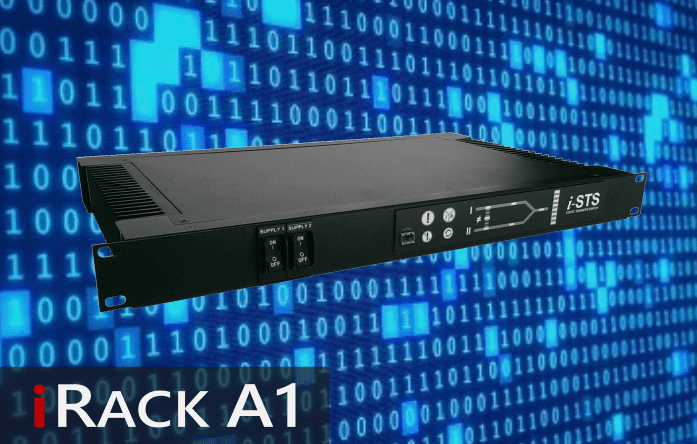

- Up to 32A, Single phase
- Built-in transient voltage protection
- UPS Eco-Mode compatible
- RCD site compatibility
- Safe asynchronous source transfers
- Very high MTBF (>800,000 hours)
- Back feed protection contactors
- Manual and automatic transfers selection
- Various input/output configuration
- Preferred source selection
- Visual and sound alarms
- Bi-colour LED mimic and load indicator
- Voltage free general alarm contact
- Ethernet module for LAN/TCP, Modbus & SNMP

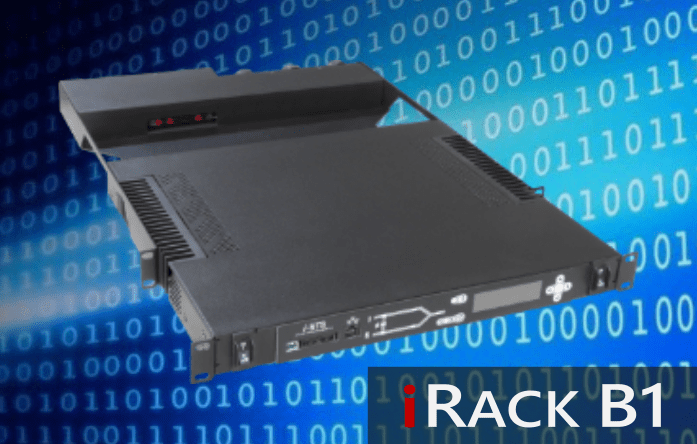

- Up to 32A, Single phase
- Maintenance bypass with hot socket field replaceable power module
- Built-in transient voltage protection
- UPS Eco-Mode compatible
- RCD site compatible
- Safe asynchronous source transfers
- Very high MTBF (>800,000 hours)
- Back feed protection contactors
- Manual or automatic transfer selection
- Integrated web server
- High-level interface – MODBUS, SNMP
- Email alerts
- Clock synchronisation with NTP
- Remote operation
- Preferred source selection
- Visual and sound alarms
- LED mimic with graphic OLED interface and load indicator
- Additional voltage free general alarm contact

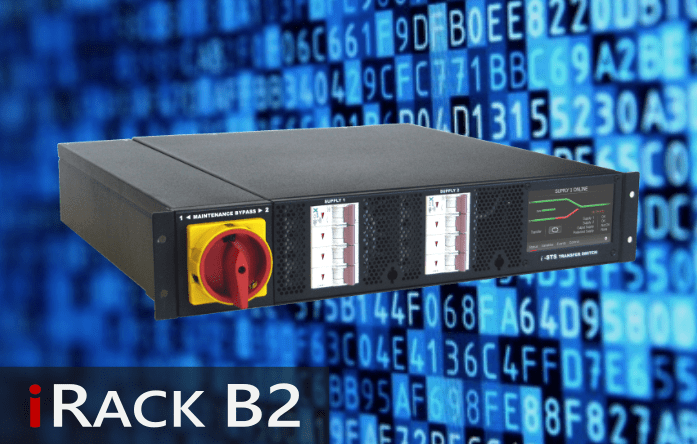

- Up to 125A, Single phase and 63A 3-Phases
- Built-in transient voltage protection
- UPS Eco-Mode compatible
- Safe asynchronous source transfers
- Very high MTBF (>800,000 hours)
- LED mimic decal with graphic OLED interface
- One touch transfers
- Visual and sound alarm
- Integrated web server
- Remote operation
- High-level interface – MODBUS, SNMP
- Email alerts
- Clock synchronisation with NTP
- Integrated maintenance bypass with hot socket field replaceable power module
- Incoming source isolator switches
- Redundant fan cooling
- Fixed wiring to terminals
- 5 x voltage free contacts & remote inputs

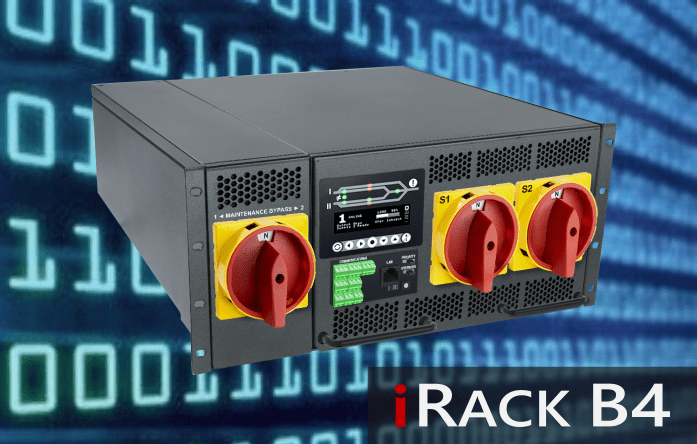

- Up to 250A, Single phase and 160A, 3-Phases
- Rack-mount 4RU Design
- Built-in transient voltage protection
- UPS Eco-Mode compatible
- Safe asynchronous source transfers
- Very high MTBF (>800,000 hours)
- LED mimic decal with graphic OLED interface
- One touch transfers
- Visual and sound alarm
- Integrated web server
- Remote operation
- High-level interface – MODBUS, SNMP
- Email alerts
- Clock synchronisation with NTP
- Incoming source isolator switches
- Integrated maintenance bypass with hot socket field replaceable power module
- Fixed wiring to input & output terminals
- 5 x Voltage free contacts & remote inputs
